Product Description

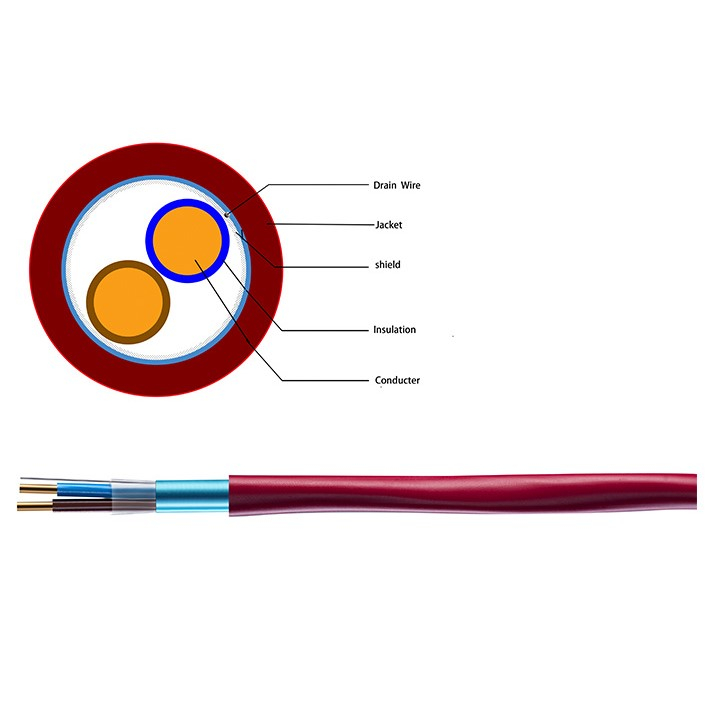

Structure | Material | Specification |
Core No. | - | 2/4 |
Conductor | TC/BC | 20-12AWG |
Insulation | PVC/PE | 0.3-0.6mm Thickness |
1st Shield | Al Foil | 100% |
2nd Shield | - | - |
Drain Wire | TC/BC | 0.5-1.0mm |
Jacket | PVC | 0.7-1.2mm Thickness |
Cable Size | Conductor | Insulation | Drain Wire |
| ||||
mm2 | Structure | Material | Material | Nom.Dia | Material | Nom.Dia | Material | Nom.Dia |
1×0.5 | 20*0.18mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.25mm |
16*0.20mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.25mm | |
1×0.75 | 30*0.18mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.45mm |
24*0.20mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.45mm | |
1×1 | 40*0.18mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.65mm |
32*0.20mm | CU | PVC | 0.5mm | CU | 0.15mm | PVC | 2.65mm | |
1×1.5 | 48*0.20mm | CU | PVC | 0.6mm | CU | 0.15mm | PVC | 3.1mm |
30*0.25mm | CU | PVC | 0.60mm | CU | 0.15mm | PVC | 3.1mm | |
1×2.5 | 80*0.20mm | CU | PVC | 0.7mm | CU | 0.15mm | PVC | 3.75mm |
49*0.25mm | CU | PVC | 0.7mm | CU | 0.15mm | PVC | 3.75mm | |
2×0.5 | 2*0.8mm | CU | PVC | 1.8mm | CU | 0.5mm | PVC | 4.80mm |
2×2×0.5 | 4*0.8mm | CU | PVC | 1.8mm | CU | 0.5mm | PVC | 6.00mm |
2×1.0 | 2*1.13mm | CU | PVC | 2.15mm | CU | 0.5mm | PVC | 5.30mm |
2×2×1.0 | 4*1.13mm | CU | PVC | 2.15mm | CU | 0.5mm | PVC | 6.60mm |
2×1.5 | 2*1.38mm | CU | PVC | 2.40mm | CU | 0.5mm | PVC | 5.90mm |
2×2×1.5 | 4*1.38mm | CU | PVC | 2.40mm | CU | 0.5mm | PVC | 7.20mm |
2×2.5 | 2*1.78mm | CU | PVC | 2.80mm | CU | 0.5mm | PVC | 6.80mm |
2×2×2.5 | 4*1.78mm | CU | PVC | 2.8mm | CU | 0.5mm | PVC | 8.00mm |
1) Coil With Carton |
100M/Coil, 6 Coil/Carton |
2). Reel With Pallet or Not |
100M/Paper Reel |
3). Reel In Box, With Pallet |
500ft Reel In Box. |
4) Other packing available according to client's request |
Our Main products:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
(Note: If the specification is not you need, please inform me and I will offer you the price according to your requirements.)
