Product Description

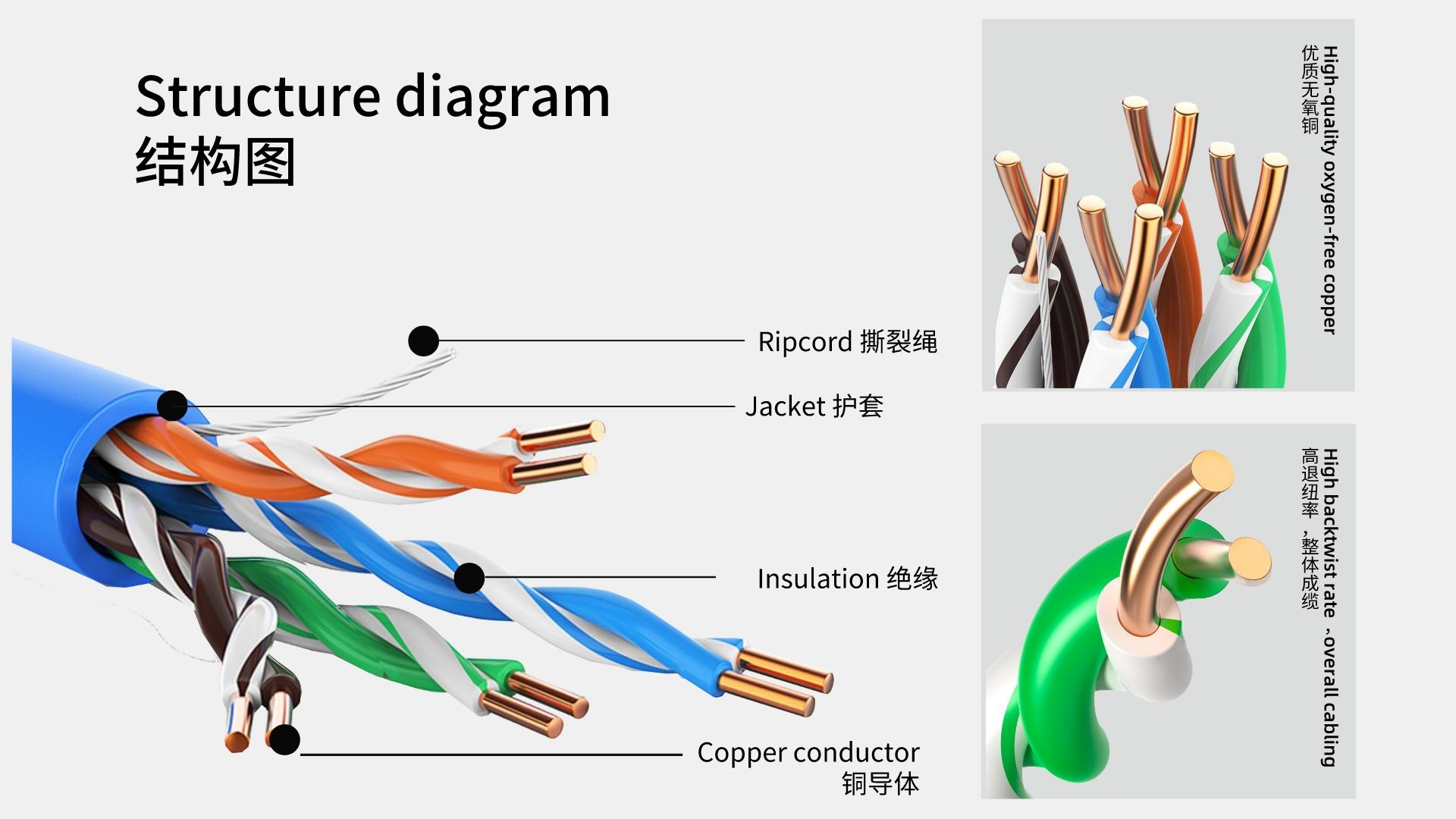

Specification | Proposed spec | |
CAT5 OUTDOOR PE BLACK | ||
CENTER CONDUCTOR | ||
BARE-COPPER | Conductivity ≤ 89 ohms/1km | |
NOMINAL DIAMETER | 4P*2C*0.50 mm ±0.01mm | |
DIELECTRIC HDPE NOMINAL DIAMETER OVER DIELECTRIC | 4P*2C*0.9 mm ±0.05mm | |
SHIELD | ||
1st SHIELD | Al/pet FOIL | |
2st SHIELD | 80*0.12±0.01mmAluminium braid wire , 60% Coverage | |
JACKET | ||
BLACK PE | ||
NOMINAL DIAMETER OVER JACKET | 5.7mm±0.1mm | |
Temperature Rating | -40℃~+80℃ | |
Dielectric Breakdown | 2500V | |
Characteristics Impedance | 100±15Ω | |
Return Loss | 16db | |
ATTENUATION (A) : @ testing temperature : 20 °C | ±5% | |
Frequency MHz | dB/100m | |
1 MHz | 2.0 dB | |
4 MHz | 4.1 dB | |
10 MHz | 6.5 dB | |
16 MHz | 8.2 dB | |
20 MHz | 9.3 dB | |
31.25 MHz | 11.6dB | |
62.5 MHz | 17.0 dB | |
100 MHz | 22.0 dB | |

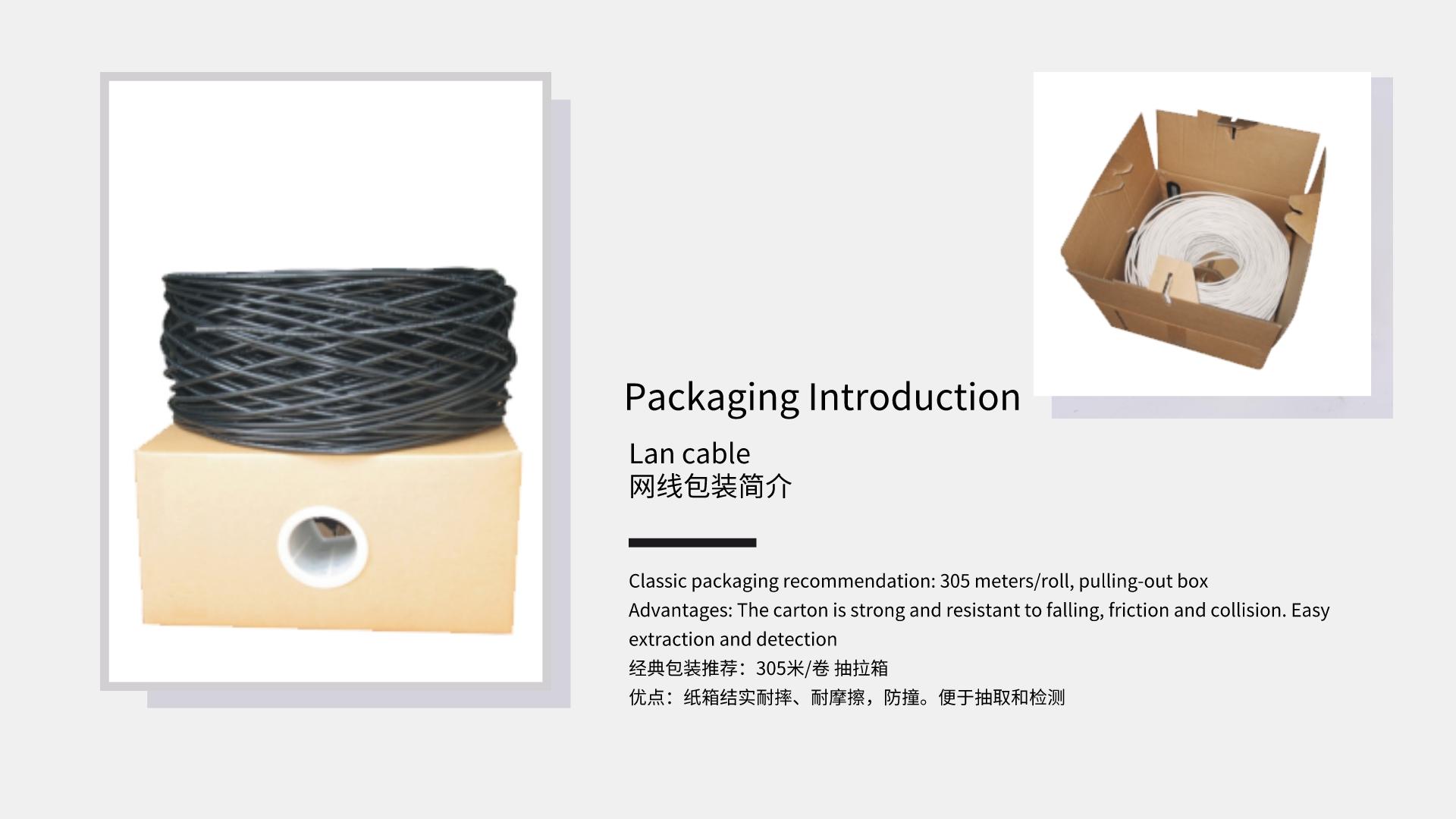

1) Coil With Carton |
100M/Coil, 6 Coil/Carton |
2). Reel With Pallet or Not |
100M/Paper Reel |
3). Reel In Box, With Pallet |
500ft Reel In Box. |
4) Other packing available according to client's request |
Our Main products:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
(Note: If the specification is not you need, please inform me and I will offer you the price according to your requirements.)
